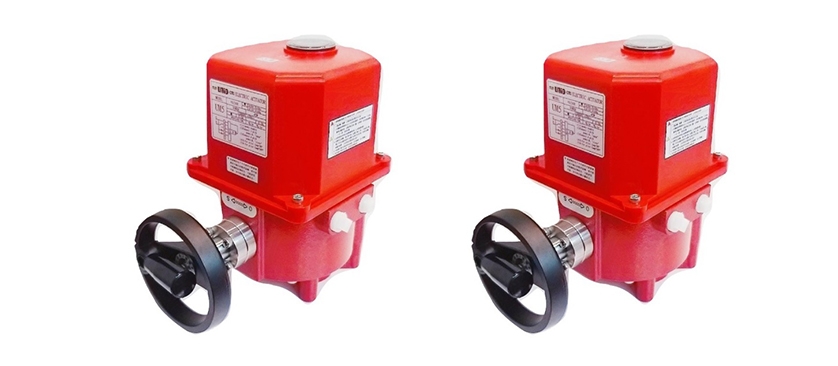

UNID Electical actuators UM5


code : UM-5 - 30 - AC220-40W

Electrical Actuator : UMD series __  It can control the opening of valve by voltage, current, or temperature.

Torque: 488 Nm

Power supply:

Single-phase power AC110V~120V/AC200V~250V 50/60Hz DC24V

3-phase power AC220V/AC380V/AC440V

The voltage can be customized.

Input Signal (Standard):4~20mA   _  2~10VDC

Output Signal:4~20mA




Facebook Twitter Google Digg Reddit LinkedIn Pinterest StumbleUpon



  • Details
  • Specifications
  • Video

Power supply:
Single-phase power AC110V~120V/AC200V~250V 50/60Hz DC24V
3-phase power AC220V/AC380V/AC440V
The voltage can be customized.
Input Signal (Standard):
4~20mA
2~10VDC
Output Signal:
4~20mA
1~5VDC、2~10VDC(choose one)
input and output signal can be adjusted according to customer’s requirement.
