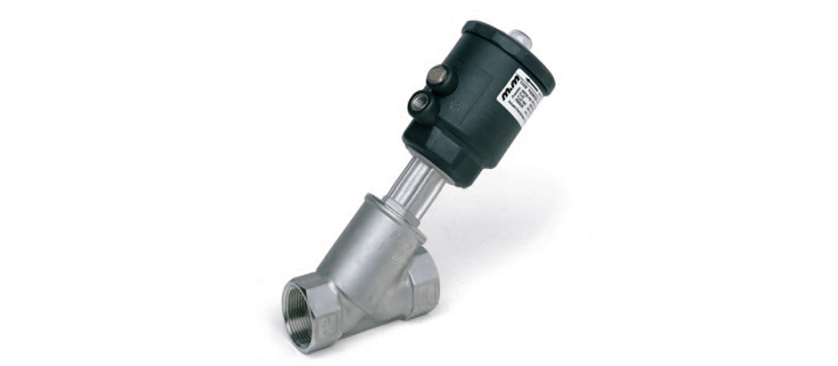

Pneumatic angle seat valve 1


code : PG207STY00 PG207STY00VP 1


Media: water, oil, air, aggressive media and steam(1)
Media temperature: -10°C … +180°C
Ambient temperature: -10°C … +60°C
Pilot media: air, inert gases, water
Body material: cast AISI 316L (ASME SA351/351M GRADE CF3M)
Bonnet material: cast AISI 316L (ASME SA351/351M GRADE CF3M)
Actuator body material: Polyamide PA6 (reinforced fiberglass 30%)
Seal material: PTFE
Position indicator as standard
