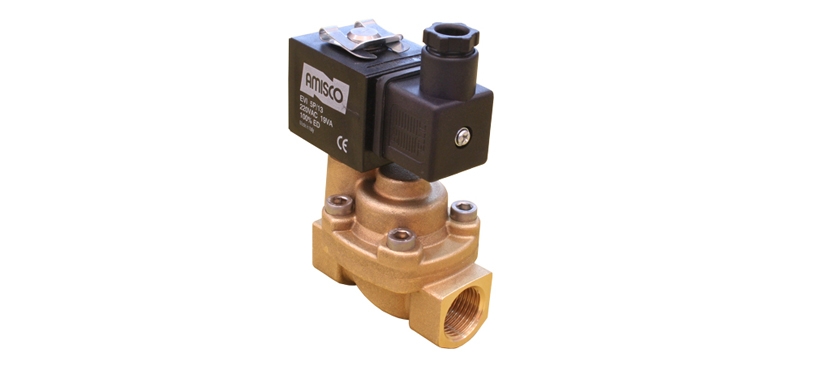

General purpose high pressure

REFERANCE:

1801-KBPF040-250-220AC

MAIN SERIES:

General Purpose - High Pressure

FUNCTION:

2/2 Ways

POSITION:

Normally Closed

OPERATION TYPE:

Pilot Operating

SEAT SEAL MATERIAL:

PTFE Diaphragm /PTFE Seal

PORT SIZE:

1”

ORIFICE:

25mm

Kv:

165.00 l/min

Pmin-Pmax (bar):

0,5-40 bar

Tmin / Tmax (°C):

-10 °C / 180 °C

WEIGHT:

1.205 Kg

COIL VOLTAGE - TOLERANCE:

12,24,220,230V AC/DC
