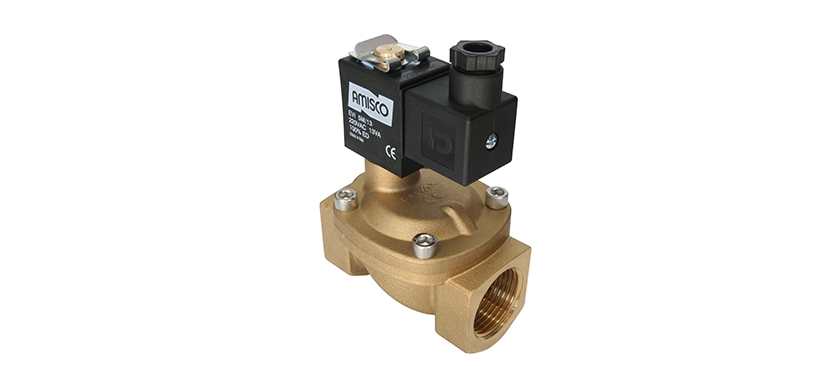

General purpose 1


code : 1901-ABNF016-250

REFERANCE: 1811-ABNF016-250-220AC
MAIN SERIES: General Purpose - Low Differential Pressure
FUNCTION: 2/2 Ways
POSITION: Normally Open
OPERATION TYPE: Pilot Operating
SEAT SEAL MATERIAL: NBR Diaphragm / NBR Seal
PORT SIZE: 1”
ORIFICE: 25mm
Kv: 150.00 l/min
Pmin-Pmax (bar): 0,1-16 bar
Tmin / Tmax (°C): -10 °C / 80 °C
WEIGHT: 1.060 Kg
COIL VOLTAGE - TOLERANCE: 12,24,220,230V AC/DC
