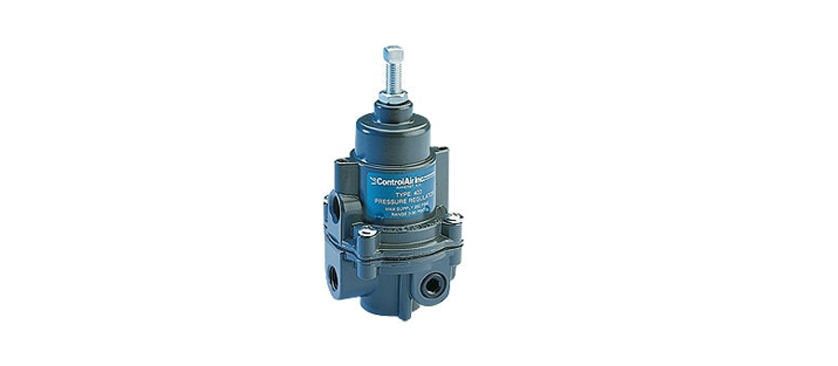

Type 400 General Service Regulator
code :
The ControlAir Type 400 is a general purpose regulator designed to provide reliable performance under variable operating conditions. This quality unit is ideal as an economical alternative for control of industrial process applications. The regulation characteristics of the Type 400 have been proven to be superior to comparable competitive units. Durable materials and corrosion resistant construction provide reliable operation in harsh industrial environments.
PDF Sales Sheet
OPTIONS Add proper letter onto end of model number: K - Knob: to replace square head adjust screw. E - Tapped Exhaust: allows captured exhaust air. 1/4" NPT port. N - Non-Relieving: for constant flow or downstream pressure relief applications. T - Tamperproof Cover: prevents casual adjustment of output pressure. S - Stainless Steel Adjust Screw: hexhead stainless steel adjust screw for maximum corrosion resistance. V - Viton® Elastomers: used where elements in the supply air are particularly destructive to standard Buna-N pintle and diaphragm material. ACCESSORIES B - Mounting Bracket: zinc-plated steel bracket for side mounting P/N: 446-707-028 Pressure Gauge - 1/4" NPT back-mount, 2" face 0-30 psi (0-2 BAR) P/N: 446-725-004 0-60 psi (0-4 BAR) P/N: 446-725-001 0-160 psi (0-8 BAR) P/N: 446-725-002 |
||||||||||||||||||||||
| MaterialsBody: diecast aluminum alloy. Diaphragm: nitrile elastomer and nylon fabric. Trim: brass, zinc plated steel, acetal
|
