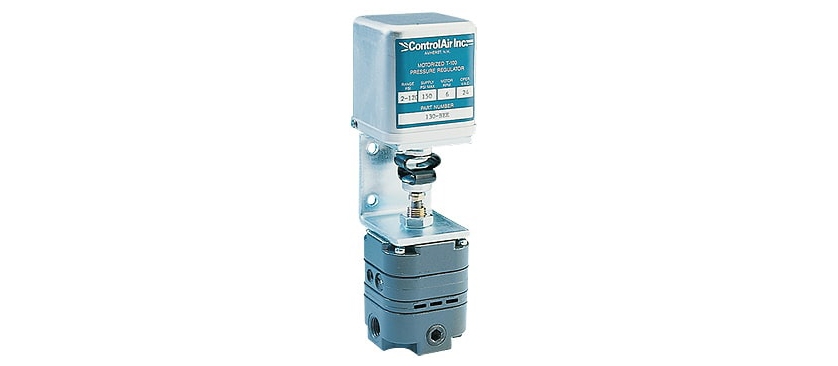

Type 100M Motorized Precision Air Pressure Regulator


code :

The ControlAir Type-100M Motorized Air Pressure Regulator is designed to provide precise pneumatic control by use of an electrical signal. This highly accurate device is well suited for pneumatic control of a system from a remote location. Utilizing two tandem synchronous AC Motors, each having it's own set of leads, but operating through a single output shaft, direction of rotation is dependant of which set of leads power is applied to. The motor is coupled to ControlAir's Type-100, which is a high precision, multi-stage air pressure regulator with low power requirements.
OPERATION:
When no electrical power is supplied the regulator maintains a precise set point despite variable supply pressure conditions and flow rates. When power is applied to the motor the regulator pressure output changes intermittently.





Facebook Twitter Google Digg Reddit LinkedIn Pinterest StumbleUpon

Download

Catalogue 1


  • Details
  • Specifications
  • Video

The ControlAir Type-100M Motorized Air Pressure Regulator is designed to provide precise pneumatic control by use of an electrical signal. This highly accurate device is well suited for pneumatic control of a system from a remote location. Utilizing two tandem synchronous AC Motors, each having it's own set of leads, but operating through a single output shaft, direction of rotation is dependant of which set of leads power is applied to. The motor is coupled to ControlAir's Type-100, which is a high precision, multi-stage air pressure regulator with low power requirements.
OPERATION:
When no electrical power is supplied the regulator maintains a precise set point despite variable supply pressure conditions and flow rates. When power is applied to the motor the regulator pressure output changes intermittently.


Regulator Specifications

Flow Capacity

14 SCFM (396 Nl/min.) at 100 psig (7 BAR) supply
20 psig outlet (1.4 BAR) outlet

Exhaust Capacity

5 psig (3.5 BAR) above 20 psig (1.4 BAR) setpoint
Standard Regulator - 2 SCFM (57 Nl/min)High Relief Regulator - 10 SCFM (17.0 m3/hr.)

Total Air Consumption

0.10 SCFM

Maximum Supply Pressure

150 psig (10 BAR)

Temperature Range

0° to -140° F (-18° to -60° C)

Available Port Sizes/Output Ranges

See Ordering Information

Motor Specifications

Motor Type

Reversible, synchronous motor with gear drive and slip clutch

Torque

Approximate 8 in. oz.

Motor Operating Voltage/Frequency /Speeds/Power Consumption

See Ordering Information

Regulator/Motor Specifications - Weight - 2.75 lbs.

Pressure Range

Approximate Time to Cover Full Range(Seconds)

Psig

bar

2RPM

6RPM

2-40

0.14-2.8

120

40

2-60

0.14-4

90

30

2-120

0.14-8.3

150

50

Request Now
