PSR-E Series


الكود :

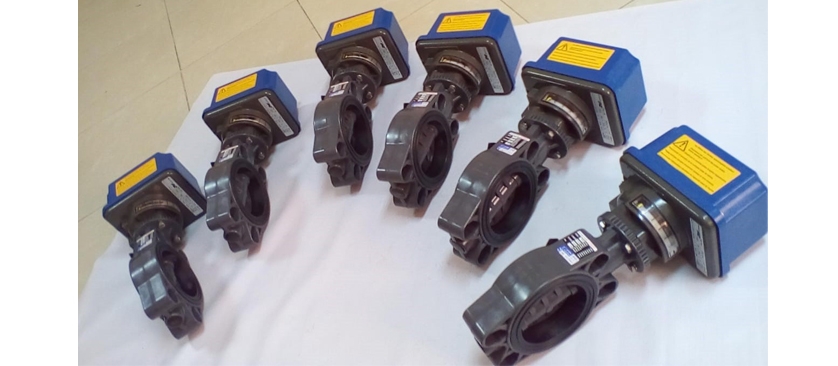

The quarter-turn actuator series PSR-E is the economical addition to the proven actuator series PSQ for torque requirements from 25 Nm to 50 Nm, directly mounted as per ISO 5211. PSR-E series is containing a maintenance-free, low-wear and low-noise spur gear resulting in high efficiency and long lifetime. The PSR-E series with various operating times is most suitable for control operation due to the use of synchronous motors without after-run.
Customers who use the PSQ quarter-turn and PSL linear actuators profit from a standardisation of the modular accessories in several ways, as fewer parts must be held in stock and the training requirements for the sales, service and assembly staff are reduced considerably





Facebook Twitter Google Digg Reddit LinkedIn Pinterest StumbleUpon



  • التفاصيل
  • المواصفات
  • الفيديو

ARTICLE

TORQUE

CONTROL TORQUE

RESPONSE TIME

FLANGE ISO5211

PROTECTION

DOWNLOADS

PSR-E25

25 Nm

12,5 Nm

9 - 17 s/90°

F05 / F07 (F04 / F07 opt.)

IP65

Data sheet

Manual



PSR-E-C25

25 Nm

12,5 Nm

9 - 17 s/90°

F04 / F05 / F07

IP65

Data sheet

Manual



PSR-E-C45

45 Nm

22,5 Nm

14 - 17 s/90°

F04 / F05 / F07

IP65

Data sheet

Manual



PSR-E50

50 Nm

25,0 Nm

16 - 33 s/90°

F05 / F07 (F04 / F07 opt.)

IP65

Data sheet

Manual
