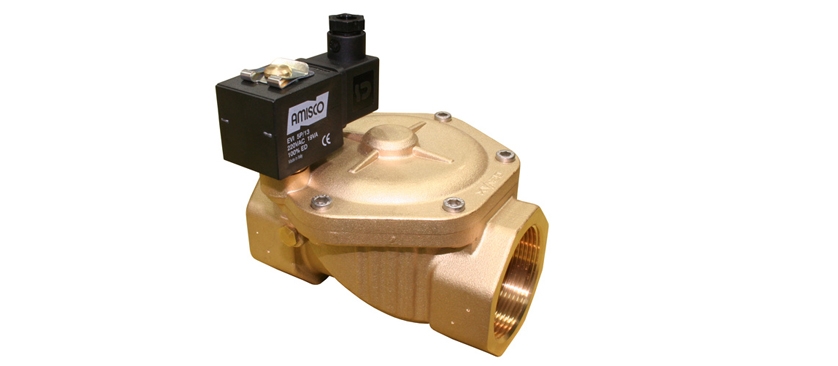

General purpose 3/8


code : 1901-KBNC016-100

Size: 3/8"
2/2
NC
Diaphragm : NBR
Internal seales:NBR
Pressure: 0.5- 16 bar
Temperature : -10 to 80 C°
Power supply: 24vdc,24vac,110,220 vac
Valve Manufacture  : Gevax -Turkey
Coil Manufacture  : Amisco -Italy



Facebook Twitter Google Digg Reddit LinkedIn Pinterest StumbleUpon



  • Details
  • Specifications
  • Video

A

B

C

D

E

F

G

H

J

K

L

M

66

37

23

142

35

131

103

140

161




Description: 1901-KBNI010-500-220AC

REFERANCE:

1901-KBNI010-500-220AC

MAIN SERIES:

General Purpose

FUNCTION:

2/2 Ways

POSITION:

Normally Closed

OPERATION TYPE:

Pilot Operating

SEAT SEAL MATERIAL:

NBR Diaphragm / NBR Seal

PORT SIZE:

2”

ORIFICE:

50mm

Kv:

575.00 l/min

Pmin-Pmax (bar):

0,5-10 bar

Tmin / Tmax (°C):

-10 °C / 80 °C

WEIGHT:

3.675 Kg

COIL VOLTAGE - TOLERANCE:

12,24,220,230V AC/DC
