Smart quarter turn and linear actuators


code :

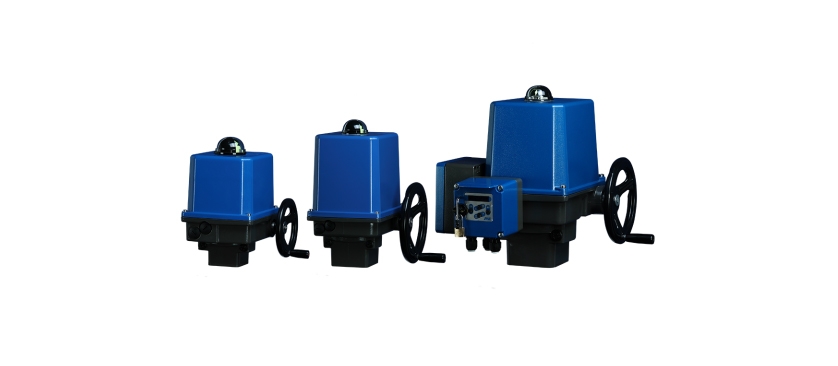

PSQ-AMS is the patented smart actuator solution up to 1000 Nm torque for modulating control valve applications. PSQ-AMS includes enhanced electronics with an embedded micro-controller with flash memory that controls and monitors the entire actuator function. Summarizing all functions on a single circuit board makes the actuator extremely compact and safe in operation. The value for money is outstanding.




Facebook Twitter Google Digg Reddit LinkedIn Pinterest StumbleUpon



  • Details
  • Specifications
  • Video

ARTICLE

TORQUE

CONTROL TORQUE

RESPONSE TIME

FLANGE ISO5211

PROTECTION

DOWNLOADS

PSQ103/AMS11

130 Nm

65,0 Nm

36 - 72 s/90°

F05 / F07

IP67

Data sheet

Manual

2D-Drawing



PSQ103/AMS12

130 Nm

65,0 Nm

9 - 18 s/90°

F05 / F07

IP67

Data sheet

Manual

2D-Drawing



PSQ203/AMS11

250 Nm

125,0 Nm

60 - 120 s/90°

F07 / F10

IP67

Data sheet

Manual

2D-Drawing



PSQ203/AMS12

250 Nm

125,0 Nm

16 - 32 s/90°

F07 / F10

IP67

Data sheet

Manual

2D-Drawing



PSQ503/AMS12

500 Nm

250,0 Nm

36 - 72 s/90°

F10 / F12

IP67

Data sheet

Manual

2D-Drawing



PSQ703/AMS13

700 Nm

350,0 Nm

70 - 140 s/90°

F10 / F12

IP67

Data sheet

Manual

2D-Drawing



PSQ1003/AMS13

1 000 Nm

500,0 Nm

70 - 140 s/90°

F12 / F14

IP67

Data sheet

Manual

2D-Drawing
